Technical specifications

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	1300.00 W
Frequency range:	120 - 18000 Hz
Dimensions:	Width: 42 cm Depth: 27.5 cm Height: 25 cm
Weight:	22.50 kg
Top:
Rated power:	150 W RMS
Program power:	200 W
Components:	20 cm woofer (8"), 2 cm horn (0.75")
Connection:	1 Speaker socket
Sensitivity:	99 dB
Maximum SPL:	121 dB
Impedance:	4 ohms
Crossover frequency:	2.5 kHz
Dispersion angle:	90° x 40°
Dimensions (H x W x D):	420 x 275 x 250 mm
Subwoofer:
Rated power:	2 x 300 W RMS
Program power:	2 x 450 W
Components:	38 cm woofer (15"), dual voice-coil
Inputs:	2 x XLR, 2 x 6.3 mm jack
Through:	2 x XLR
Outputs:	2 Speaker sockets
Sensitivity:	101 dB
Maximum SPL:	127 dB
Impedance:	8 ohms
Dimensions (H x W x D):	545 x 455 x 640 mm
Amplifier:
Total power output:	900 W RMS
Nominal power output satellite:	2 x 150 W RMS / 4 ohms
Nominal power output subwoofer:	600 W RMS (300 + 300 W)
Min. input sensitivity:	0.775 V
Control elements:	Power switch, Gain-control (one per channel), Low/Mid/High-equalizer, Master-control, Ground Lift, limiter
LED indicators (per channel):	Power, Signal/Limit
Protection circuits:	Short-circuit, DC-protection-circuit, Thermal protection-circuit, Softstart, opto-limiter and subsonic filter
Equalizer:
Tone control/channel:
Treble:	±10 dB at 10 kHz
Middle:	±10 dB at 1.3 kHz
Bass:	±10 dB at 75 Hz
Active crossover:
Crossover frequency:	50-500 Hz, -3 dB

Packaging units

PU	EAN	Weight	Dimensions
1	4026397181517	24,00 kg	56cm x 32cm x 48cm
1	4026397181586	59,50 kg	72,5cm x 52cm x 61cm

Spare parts

Transistor C 5200 NPN

Relay 24V/30A AS-900 (Powersupply)

FUTURELIGHT bridge rectifier KBPC 3510

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Illustration

Name	Version	Language
11038810-Illustration-9614-de.pdf (35 KB)	0.0000	de
11038810-Illustration-9670-de.pdf (104 KB)	0.0000	de
11038810-Illustration-37866-Ring-bolt-M10-50mm-de.pdf (12 KB)	0.0000	de

Data sheet

Name	Version	Language
11038810-Datasheet-9603-1.0000-de.pdf (2 MB)	1.0000	de
11038810-Datasheet-9604-1.0000-en.pdf (2 MB)	1.0000	en

Service document

Name	Version	Language
11038810-Service-15943-1.0000-de.pdf (312 KB)	1.0000	de

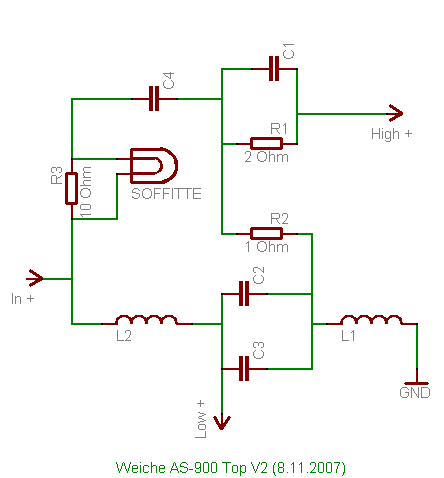

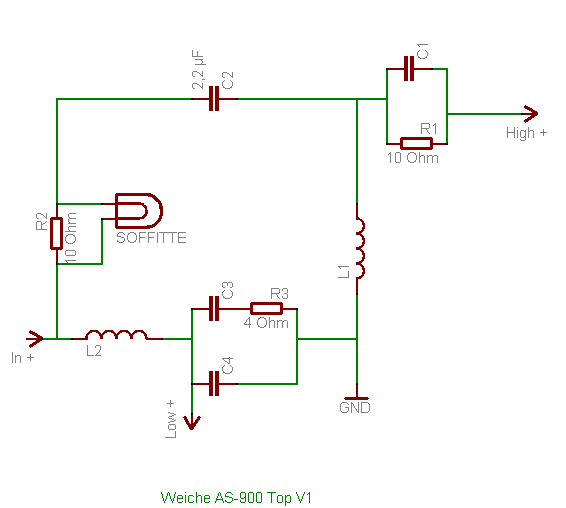

11038810-Service-41891-Schaltung-Crossover-de.pdf (725 KB)	0.0000	de

All images

Name	Version	Language
11038810-Images-.zip

OMNITRONIC AS-900 Active system, 900 watt

OMNITRONIC AS-900 Active system, 900 watt

The article is no longer in our assortment.

No. 11038810

Active complete system

Two-way satellite-system consisting of two tops and one subwoofer
Due to compact transportation size ideal for solo entertainers, mobile discotheques and small bands
Easy transportation via 4 wheels
Easy-to-use complete system with amplifiers, equalizer, limiter and crossover
Ground Lift-switch against humming
Many protection-circuits for optimized equipment-protection: opto-limiter and subsonic filter for protection from extremely low frequencies
Rugged full-range top speaker in a stable wooden housing
Trapezoidal housing shape for easy clustering
Constant directivity horn with coil-driver
Tops with passive 2-way crossover
Powerful, dry bass via voluminous housing with bass-reflex-system
Balanced frequency range with high sound-pressure
Very high durability
Speaker connection via lockable Speaker-plugs
Housing made of 15-mm (top) or 18-mm (sub) wood
Scratch-resistant lacquer surface
Impact-resistant steel grille with acoustic foam
With flange for speaker-stand installation etc.
Bass-flange with M20 thread for safe installation
Tops can be used lying, standing, on the subwoofer, on a speaker-stand or stand or suspended
Subwoofer can be used lying or standing
Compact speaker-system for car transport
Can be operated mono or stereo
With XLR-Through-sockets for connecting further systems
Large amplification systems can be realized via several AS-900 systems
Ideal as PA-system for mobile use
Delivery includes two 5-meter Speaker-cables
Speaker-stands, connection-cables and transportation bag must be ordered separately
For further information about this product, please refer to the Data Sheet under "Downloads"
